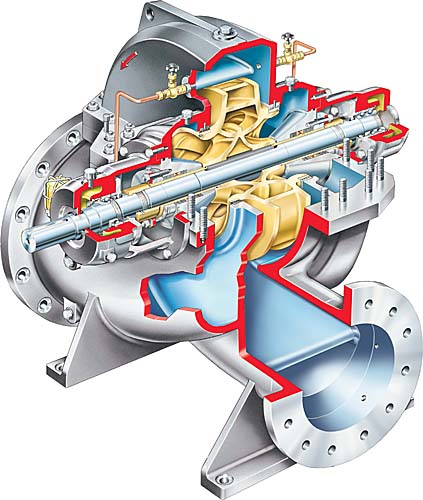

LNN Between Bearing, Axially Split, Single Stage Pump

The Flowserve LNN is an axially split, double suction pump design featuring 145 impeller and volute combinations resulting in quiet operation, low NPSH requirements, and high efficiency operation in all water applications.

应用程序:
Water Cooling,Feedwater Booster,Water Supply,Irrigation,Water Treatment,Pipeline,HVAC,Pulp and Paper,Sea Water,Municipal,Marine,Cargo Loading and Unloading,Circulating Water,Coolant Injection,Component Cooling,Crude Oil Transfer,Dry Dock,Fire Protection,Flood Protection,Water

Industries:
冷却水-金属、冷却系统、公用事业、Pressurized Water Reactors – Safety,Pressurized Water Reactors – Non-safety,OEM,Nuclear Power,Miscellaneous Services,Ground Water Development and Irrigation,Fire Protection – General Industry,Dewatering & Water Supply,Desalination,Water Treatment,Boiler Feed,Boiling Water Reactors Non-safety,Boiling Water Reactors Safety,Water Supply and Distribution,Water Handling and Treatment

Double Suction Impeller and Heavy-Duty Double Volute Casinginherently result in optimum axial and radial thrust balance over the full operating range.

Hydraulically Balanced Double Suction Impellerreduces NPSH requirements and ensures smooth, efficient operation over a wide range of conditions.

Dynamically Balanced Impellersto ISO 1940 tolerances.

Independent Cast Seal Chamberhousing for packing or mechanical seal.

Shaftconservatively designed to minimize deflection and reduce maintenance costs caused by wear.

• Choice of bearings
• Choice of materials
• Other configurations
  • LNNV (vertical mounting, in-line suction & discharge)
  • LNNC (horizontal mounting, bottom suction & side discharge)
• Operating parameters
  • Temperatures to 150°C (300°F)
